Swagger Extended Learning

Swagger Ecosystem Toolchain

Documentation Enhancement Tools

Tool Purpose Features
Redoc Generate beautiful documentation Supports responsive layout, code folding, multi-language
SwaggerUI Themes Customize Swagger UI themes Provides dark/minimalist and other themes
Widdershins Convert OpenAPI to Markdown Compatible with GitBook/Docusaurus

Example (Quick Redoc Integration)：

Examples

<!DOCTYPE html>
<html>
<head>
  <script src="https://cdn.redoc.ly/redoc/latest/bundles/redoc.standalone.js"></script>
</head>
<body>
  <div id="redoc-container"></div>
  <script>
    Redoc.init('https://api.example.com/openapi.json', {}, document.getElementById('redoc-container'))
  </script>
</body>
</html>

Mock Service Tools

Tool Features Applicable Scenarios
Prism Supports dynamic Mock (returns different responses based on request parameters) Frontend development debugging
Mockoon Desktop GUI tool, zero-configuration startup Rapid prototyping
WireMock Supports request recording and playback Integration testing

Prism Usage Example：

# 启动 Mock 服务器
npx @stoplight/prism-cli mock -d ./openapi.yaml

Gateway Integration Solutions

Gateway OpenAPI Support Key Capabilities
Kong ThroughKong InsomniaImport Traffic control, JWT validation
Apigee Native support for OpenAPI 3.0 Quota management, AI analysis
Tyk Auto-sync Swagger documentation Low-code API orchestration

Kong Integration Process：

  1. Import the OpenAPI file into Kong Manager
  2. Automatically generate routes and services
  3. Add plugins (such as Rate Limiting)

Industry Best Practices

Microservices API Governance

  • Solution：
    • UseSwagger + Spring Cloud ContractImplement contract testing
    • ThroughOpenAPI DiffDetect the impact of API changes on downstream

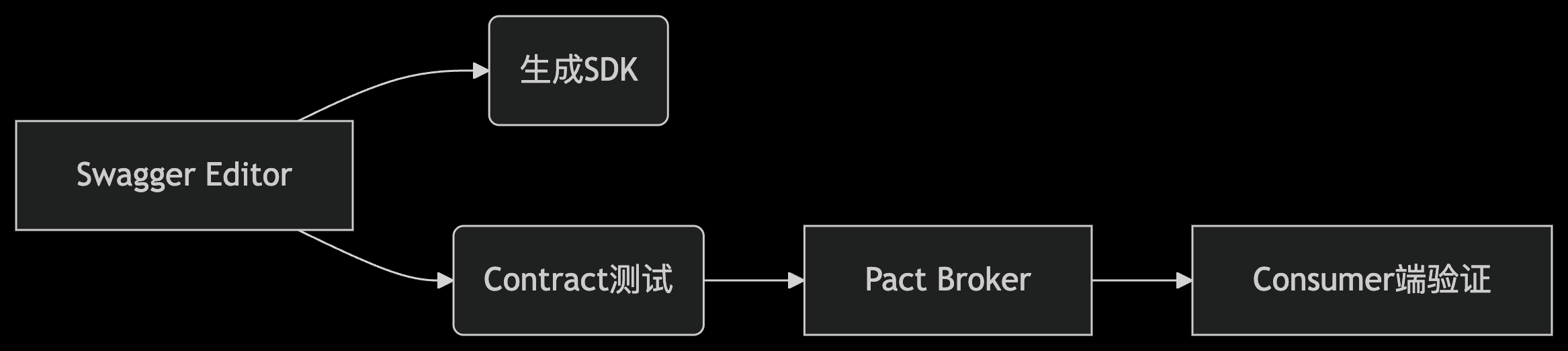

  • Toolchain：

Frontend-Backend Collaboration Model

  • Process Optimization：
    1. Backend defines the OpenAPI specification and generates a Mock server
    2. Frontend usesSwagger CodegenGenerate TypeScript client
    3. Use during joint debuggingSwagger UIReal-time debugging
  • Advantage: Reduces communication costs by 40% (according to SmartBear 2023 survey report)

Alternative Technology Comparison

Mainstream API Description Solutions Comparison

Technology Format Strengths Weaknesses
OpenAPI YAML/JSON Mature ecosystem, complete toolchain Steep learning curve
GraphQL SDL Flexible queries, strong typing Complex caching
gRPC .proto file High-performance binary transmission Poor browser support
API Blueprint Markdown Strong human readability Low community activity

Documentation Tool Selection Recommendations

  • Choose Swagger UI when: Interactive debugging is needed, team is already familiar with OpenAPI
  • Choose Redoc when: Pursuing beautiful documentation, need to embed in the company website
  • Choose Postman when: Emphasizing collaborative testing, need collection management

Cutting-edge Technology Integration

Combining AI to Generate API Documentation

  • Workflow：

    # 使用 OpenAI 从代码注释生成 OpenAPI
from openai import OpenAI
client = OpenAI()

response = client.chat.completions.create(
  model="gpt-4",
  messages=[{
    "role": "user",
    "content": "将这段 Flask 路由代码转为 OpenAPI:\n@app.route('/users')"
  }]
)
print(response.choices[0].message.content)

Low-code Platform Integration

Case：

  • Swagger + Retool: Quickly build internal management interfaces
  • OpenAPI + Appsmith: Generate CRUD frontend

Performance Optimization Tips

Large Documentation Splitting

  • Solution: Use$refReference external files
    paths:
  /users:
    $ref: "./paths/users.yaml"
components:
  schemas:
    User: $ref: "./schemas/User.yaml"
  • Tool：

Caching Strategies

  • Swagger UI Configuration：
    const ui = SwaggerUIBundle({
  url: "/api/swagger.json",
  defaultModelsExpandDepth: -1, // 默认折叠模型
  docExpansion: "none",         // 禁止自动展开
  presets: [SwaggerUIBundle.presets.apis]
})

Recommended Learning Resources

Official Advanced Guide

Open Source Project References

  • Uber API Specification：GitHub
  • Microsoft OpenAPI Examples：GitHub

Community Tools

  • Spectral: API specification static analysis (GitHub)
  • OpenAPI.Tools: Ecosystem tool encyclopedia (Website）
