Bootstrap4 Installation and Usage

We can install Bootstrap4 in the following two ways:

• Use Bootstrap 4 CDN.

• From the official websitegetbootstrap.comDownload Bootstrap 4.



Bootstrap 4 CDN

Domestic users are recommended to use ByteDance's static resource public library:

Domestic users are recommended to use the libraries on Staticfile CDN:

Note:popper.min.js is used for popups, tooltips, and dropdown menus. Currently, bootstrap.bundle.min.js already includes it.popper.min.js。

In addition, you can also use the following CDN services:

• Domestic recommendation 1:https://cdn.bytedance.com/
• Domestic recommendation 2:https://www.staticfile.net/
• International recommendation:https://cdnjs.com/

Download Bootstrap 4

You can go to the official websitehttps://getbootstrap.com/to download the Bootstrap4 resource library.

Note:In addition, you can also install it using package management tools such as npm, gem, composer, etc.:

npm install bootstrap@4.0.0-beta.2
gem 'bootstrap', '~> 4.0.0.beta2'
composer require twbs/bootstrap:4.0.0-beta.2

---

Create Your First Bootstrap 4 Page

1. Add the HTML5 doctype

Bootstrap requires the use of an HTML5 document type, so you need to add the HTML5 doctype declaration.

The HTML5 doctype is declared at the head of the document, and the corresponding encoding is set:

Mobile First

To make websites developed with Bootstrap mobile-friendly, ensuring proper rendering and touch zooming, you need to add a viewport meta tag in the head of the webpage, as shown below:

<meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">

width=device-widthIndicates that the width is the width of the device screen.

initial-scale=1Indicates the initial zoom scale.

shrink-to-fit=no automatically adapts to the width of the phone screen.

---

Container Classes

Bootstrap 4 requires a container element to wrap the content of the website.

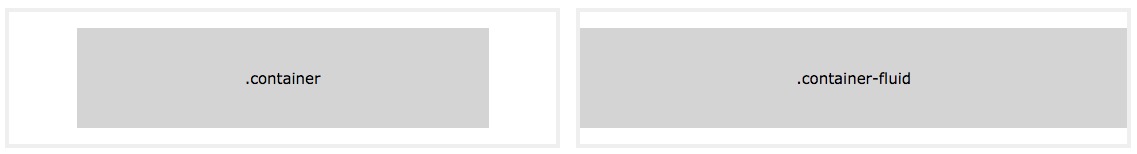

We can use the following two container classes:

• The .container class is used for a fixed-width container that supports responsive layouts.
• The .container-fluid class is used for a 100% width container that occupies the entire viewport.

---

Two Bootstrap 4 Pages

The following example shows a container that occupies the entire viewport.
