Electron installation

Before installing Electron, you need to prepare two basic environments:

1、Node.js

Electron is a framework based on Node.js, so Node.js must be installed first.

Check whether it is installed:

node -v
npm -v

If a version number is output, it means it is installed.
If not, please go toNode.js official websiteDownloadLTS (Long-Term Support version)。

After installation, the system will automatically include npm (Node package manager).

If you are not familiar with Node.js, you can refer to:Node.js

Tutorial.

2. npm or yarn

Installing Electron relies on npm or yarn for package management.

You can choose:

# 使用 npm
npm install electron --save-dev

# 或使用 yarn
yarn add electron --dev

Install Electron

There are two ways to install Electron:Global installationandInstall within the project。
RecommendedInstall within the project(safer and easier to maintain).

1. Install within the project

# 创建一个项目文件夹
mkdir my-electron-app
cd my-electron-app

# 初始化 Node 项目
npm init -y

# 安装 Electron
npm install electron --save-dev

After successful installation, the following will appear in the project directory:

node_modules/
package.json
package-lock.json

Verify whether the installation was successful

Create a simple Electron startup file:

main.js

Example

const { app, BrowserWindow } = require('electron')

function createWindow() {
const win = new BrowserWindow({
width: 800,
height: 600,
})
win.loadFile('index.html')
}

app.whenReady().then(() => {
createWindow()
})

index.html

Example

<!DOCTYPE html>
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Example(example.com)</title>
</head>
<body>
<h1>Hello, Electron!</h1>
<p>EXAMPLE Electron test.</p>
</body>
</html>

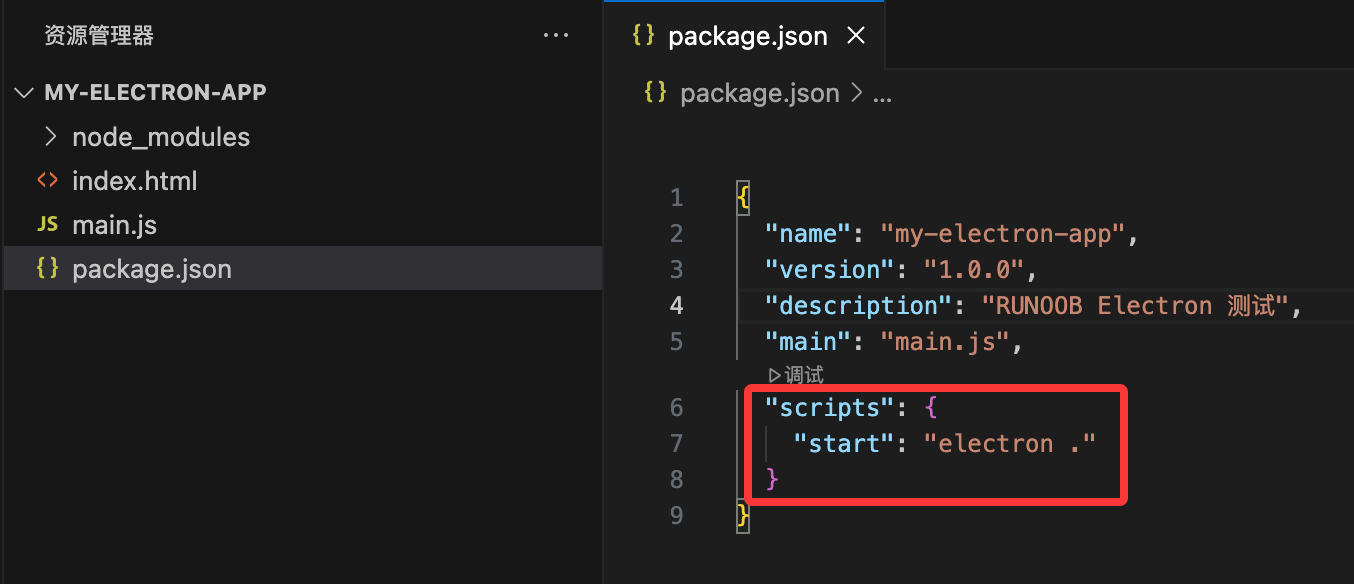

Then add a startup command in package.json:

"scripts": {
  "start": "electron ."
}

Run:

npm start

If a desktop window pops up with "Hello, Electron!" written inside, it means the installation was successful/p>

Common installation problems and solutions

Problem	Reason	Solution
`npm ERR! code ELIFECYCLE`	Permission or cache issue	Try to execute`npm cache clean --force`
`electron failed to install correctly`	Network or download source timeout	Install using the Taobao mirror (as follows)

Use a domestic mirror to speed up installation

The Electron download package is very large (tens of MB) and may time out in China. You can use the Taobao mirror:

# 临时设置
ELECTRON_MIRROR=https://npmmirror.com/mirrors/electron/ npm install electron --save-dev

Or permanently change the npm source:

npm config set ELECTRON_MIRROR https://npmmirror.com/mirrors/electron/

Optional tools

Tool name	Function	Installation command
`electron-builder`	Package into an installer (.exe / .dmg, etc.)	`npm install electron-builder --save-dev`
`electron-reload`	Automatically reload after modifying code	`npm install electron-reload --save-dev`
`electron-forge`	Quick build template	`npx create-electron-app my-app`
