Graph Theory Structure

In computer science, graphs are widely used to model social networks (users are nodes, friendships are edges), web links (web pages are nodes, hyperlinks are edges), communication networks, and even path planning problems.

GraphIt's like a social network relationship graph:

  • Node (Vertex): Each person in the social network
  • Edge: Relationships between people (friends, follows, etc.)
  • Weight: strength of the relationship (closeness, interaction frequency, etc.)

Imagine the transportation network in your city: various locations (such as home, school, shopping mall) arePoint, the roads connecting these locations areLine. A graph (Graph) is the mathematical abstraction of the relationship between points and lines; it is used to representComplex relationships between entitiesa data structure.

Real-life examples:

  • Map: cities are nodes, roads are edges, distances are weights
  • Circuit: components are nodes, wires are edges, resistance is the weight
  • Internet: websites are nodes, links are edges, traffic is the weight
  • Transportation network: stations are nodes, routes are edges, fares are weights
Scenarios Other structures Graph structure
Social relationships Difficult to express complex relationships Naturally expresses many-to-many relationships
Path planning Requires complex data structures Intuitively represents networks and paths
Dependency relationships Difficult to represent circular dependencies Easily handles complex dependencies
Network analysis Cannot express network topology Perfectly describes network structure

Basic terminology of graphs

Term definition Life Analogy Symbol representation
Vertex Basic unit in a graph People in social networks V, u, v
Edge A line connecting two vertices Relationship between two people E, (u,v)
Degree Number of edges connected to a vertex A person's number of friends deg(v)
Path Sequence of vertices Route from A to B v₁→v₂→…→vₙ
Cycle A path with the same start and end point Starting from home and eventually returning home v₁→v₂→…→v₁
Connected graph There is a path between any two points Everyone can connect with each other
Weight Numerical property of an edge Distance between two cities w(u,v)

Classification of graphs

Classification criteria Type Features application scenarios
Directionality Undirected graph Edges have no direction Friend relationships, road networks
Directed graph Edges have direction Follow relationships, workflows
Weight Unweighted graph All edges have the same weight Social network relationships
Weighted graph Edges have different weights Map distance, network traffic
Connectivity Connected graph Any two points are reachable Transportation network
Disconnected graph There are isolated vertices Social groups
Cycle Acyclic graph No cycles Task dependencies, family trees
Cyclic graph Contains cycles Road network

Graph representation methods

adjacency matrix

Features Description Time complexity Space complexity
Storage method two-dimensional matrix
check edge existence matrix[i][j] != 0 O(1)
add edge matrix[i][j] = weight O(1)
delete edge matrix[i][j] = 0 O(1)
traverse adjacent vertices scan a row/column O(V)
space usage V×V matrix O(V²)

adjacency list

Features Description Time complexity Space complexity
Storage method array + linked list
check edge existence Search in a linked list O(deg(v))
add edge Add in a linked list O(1)
delete edge Delete in a linked list O(deg(v))
traverse adjacent vertices traverse linked list O(deg(v))
space usage Vertex array + edge linked list O(V+E)

Basic concepts of graphs

a graphGConsists of two sets:

  • Vertex Set V (Vertex Set): The set of all vertices in the graph.
  • Edge Set E (Edge Set): the set of lines connecting these points. An edge is defined by the two vertices it connects(u, v)Represents.

Example

# A simple graph example: using a dictionary to represent social network friend relationships
# Vertices: Alice, Bob, Charlie, Diana
# Edges: represent the friend relationships between them

social_graph = {
    'Alice': ['Bob', 'Charlie'],   # Alice is friends with Bob and Charlie
    'Bob': ['Alice', 'Charlie', 'Diana'],
    'Charlie': ['Alice', 'Bob'],
    'Diana': ['Bob']
}

print(fVertices (users): {list(social_graph.keys())})
print(fAlice's friends (edges): {social_graph['Alice']})

Output:

顶点（用户）: ['Alice', 'Bob', 'Charlie', 'Diana']
Alice 的好友（边）: ['Bob', 'Charlie']

Graph classification and important concepts

Graphs can be divided into multiple types based on the properties of their edges; understanding these is the foundation of mastering graph theory.

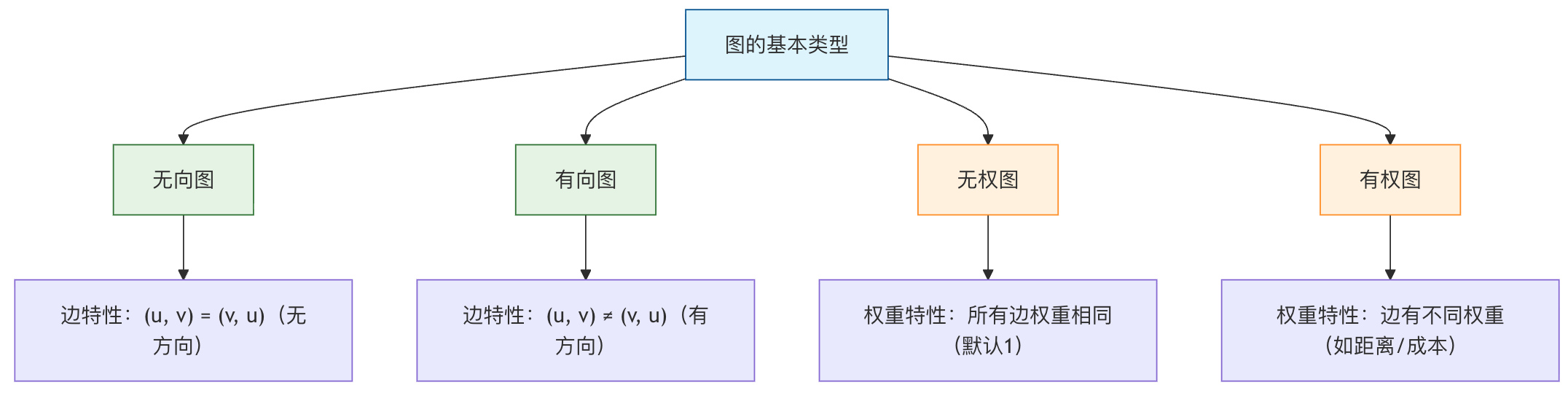

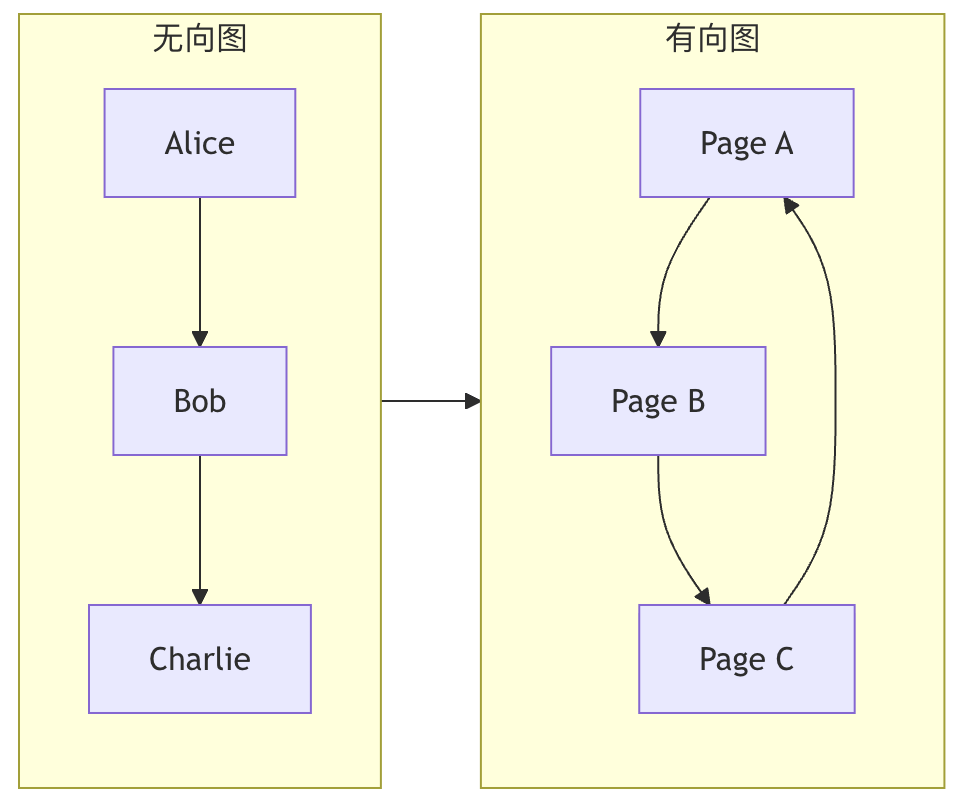

Undirected graph vs directed graph

Type Characteristics of edges (Edge) life analogy Example
Undirected graph Edges have no direction,(A, B)Represents that A and B are mutually connected. bidirectional friendship: if Alice is Bob's friend, then Bob must also be Alice's friend. Friendships in social networks, connections in circuits.
Directed graph edges have direction,A -> BRepresents a one-way connection from A to B. Weibo following: You can follow someone, but the other person may not follow you back. Web hyperlinks, task dependencies, one-way traffic roads.

weighted graph

In a weighted graph, each edge is assigned a numerical value (weight), which can represent distance, cost, time, or relationship strength.

Example

# A weighted graph representing distances between cities (adjacency list form)
weighted_graph = {
    'Beijing': {('Shanghai', 1200), ('Tianjin', 100)},  # Distance from Beijing to Shanghai is 1200, to Tianjin is 100
    'Shanghai': {('Beijing', 1200), ('Hangzhou', 200)},
    'Tianjin': {('Beijing', 100)},
    'Hangzhou': {('Shanghai', 200)}
}

key terms

  • degree (Degree): the number of edges connected to a vertex. In a directed graph, it is divided intoin-degree(number of edges pointing to the vertex) andout-degree(number of edges pointing out from the vertex).
  • path (Path): a sequence of edges traversed from one vertex to another. For example,A -> B -> C。
  • cycle/circuit (Cycle): a path whose starting point and ending point are the same vertex.
  • Connected Graph: in an undirected graph, there is a path between any two vertices.
  • Strongly Connected Graph: in a directed graph, there is a path between any two vertices.bidirectionalpath.

Graph storage methods

How to represent a graph in a computer? There are mainly two mainstream methods.

adjacency matrix

Use a two-dimensional array (matrix)matrixto represent the graph.matrix[i][j]The value represents the vertexito vertexjThe situation of edges.

  • For undirected graphs, the matrix is symmetric.
  • For a weighted graph, the matrix entries store weights (using special values such as0or∞Represents no edge).
  • Advantages: checking whether there is an edge between any two vertices is very fast (O(1)）。
  • Disadvantages: Takes up a lot of space (O(V^2)), but it wastes space for "sparse graphs" with few edges.

Example

# Use an adjacency matrix to represent an undirected graph
# Vertices: 0-A, 1-B, 2-C
# Edges: A-B, A-C

V = 3  # Number of vertices
adj_matrix = [[0] * V for _ in range(V)]

# Add edge A-B (0-1)
adj_matrix[0][1] = 1
adj_matrix[1][0] = 1  # Undirected graph needs to set symmetric positions
# Add edge A-C (0-2)
adj_matrix[0][2] = 1
adj_matrix[2][0] = 1

print("Adjacency matrix:")
for row in adj_matrix:
    print(row)
# Output:
# [0, 1, 1]
# [1, 0, 0]
# [1, 0, 0]

adjacency list

Maintain a list (linked list, array, etc.) for each vertex, recording all vertices (and weights) directly connected to it.

  • Advantages: High space efficiency (O(V + E)), especially suitable for sparse graphs. It can quickly find all neighbors of a vertex.
  • Disadvantages: checking whether there is an edge between any two vertices is slower (O(degree(V))）。

Example

# Use adjacency list (dictionary + list) to represent the same undirected graph
adj_list = {
    'A': ['B', 'C'],  # A connects to B and C
    'B': ['A'],       # B connects to A
    'C': ['A']        # C connects to A
}

print("Adjacency list:")
for vertex, neighbors in adj_list.items():
    print(f"{vertex}: {neighbors}")

Graph traversal algorithms

Traversal is the foundation of graph algorithms; it means systematically visiting every vertex in the graph.

There are mainly two strategies:

Breadth-First Search

Breadth-first search (BFS) is like "water wave diffusion": starting from the starting point, it first visits all direct neighbors, then the neighbors' neighbors, and so on. It usesQueueto implement.

Algorithm steps：

  1. Put the starting point into a queue and mark it as visited.
  2. When the queue is not empty: a. Dequeue the front vertexv. b. Visitvall unvisited neighbors of it, put them into the queue and mark them as visited.
  3. Repeat step 2.

Example

from collections import deque

def bfs(graph, start):
    """Use BFS to traverse the graph, return visit order"""
    visited = set([start])  # Record visited vertices
    queue = deque([start])  # Initialize queue
    result = []             # Store visit order

    while queue:
        vertex = queue.popleft()
        result.append(vertex)
        # Traverse the neighbors of the current vertex
        for neighbor in graph[vertex]:
            if neighbor not in visited:
                visited.add(neighbor)
                queue.append(neighbor)
    return result

# Test data
test_graph = {
    'A': ['B', 'C'],
    'B': ['A', 'D', 'E'],
    'C': ['A', 'F'],
    'D': ['B'],
    'E': ['B', 'F'],
    'F': ['C', 'E']
}

print("BFS traversal order (starting from A):", bfs(test_graph, 'A'))
# Output could be: ['A', 'B', 'C', 'D', 'E', 'F']

Depth-First Search

Depth-first search (DFS) is like "walking through a maze": it chooses one path, goes to the end, then backtracks and takes another path. It usesStack(or recursion) to implement.

Recursive algorithm steps：

  1. from vertexvStart, mark as visited.
  2. forvevery unvisited neighbor ofu: a. Recursive callDFS(u)。

Example

def dfs_recursive(graph, vertex, visited=None, result=None):
    """Implement DFS using recursion"""
    if visited is None:
        visited = set()
    if result is None:
        result = []

    visited.add(vertex)
    result.append(vertex)

    for neighbor in graph[vertex]:
        if neighbor not in visited:
            dfs_recursive(graph, neighbor, visited, result)
    return result

print("DFS traversal order (starting from A):", dfs_recursive(test_graph, 'A'))
# The output may be: ['A', 'B', 'D', 'E', 'F', 'C']

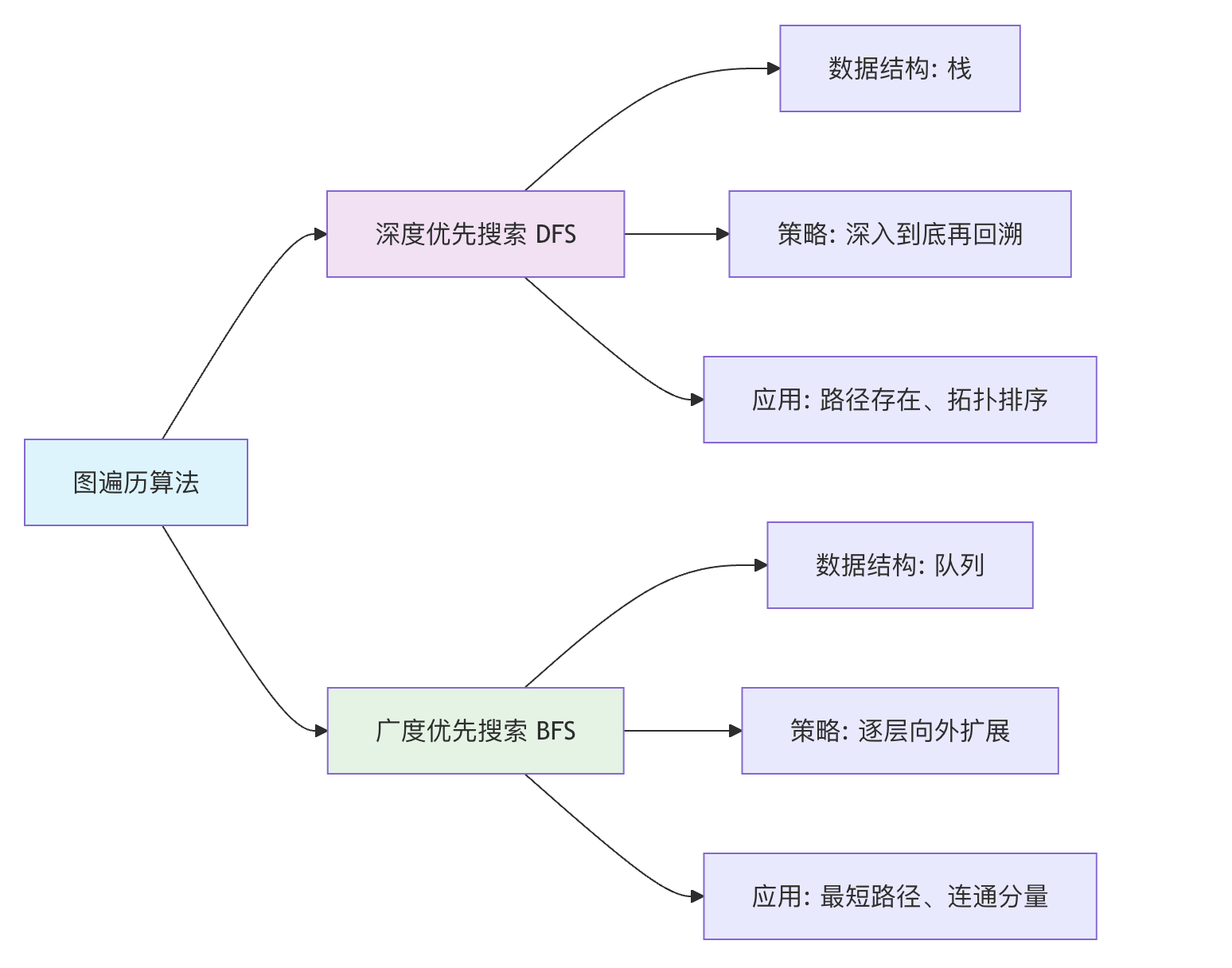

Comparison of graph traversal algorithms:

Classic application scenarios and algorithm introduction

Once you have mastered graph representation and traversal, you can explore many classic problems:

  1. Shortest path problem: in map navigation, find the shortest driving distance between two points.

    • Dijkstra's algorithm: applies tonon-negative-weightgraphs.
    • Floyd's algorithm: compute the shortest paths between all pairs of vertices.

  2. Minimum Spanning Tree: under the premise of keeping all vertices connected, select the edge set with the smallest total weight (for example, laying the lowest-cost fiber network for multiple villages).

    • Prim's Algorithm
    • Kruskal's algorithm

  3. Topological Sorting: linearly order the vertices of a directed acyclic graph (DAG) so that for any directed edgeu->v，uIn sorting, all are rankedvbefore (for example, arranging the learning order of courses).

other extensions
